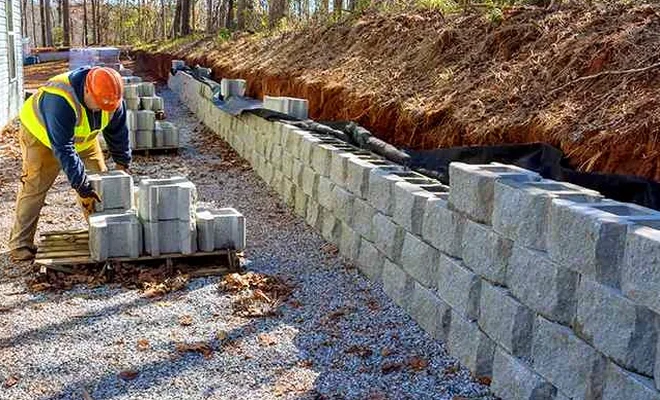

Retaining Wall Design in Ashford: Geotechnical Certainty Before Excavation

Knowledgeable. Thorough. Resourceful.

LEARN MORE

We see it regularly on Ashford sites: a contractor opens a cut for a basement on a residential plot near Kennington, assumes the ground will stand up for a few days, and by Tuesday morning there is a slump in the face and a call to the building control officer. The Weald Clay underlying much of the borough looks competent in the dry but weathers rapidly once exposed, losing suction and collapsing without warning. A retaining wall design done before the shovel hits the ground changes that scenario completely. Rather than reacting to instability, the job moves forward with a shape and reinforcement schedule that accounts for the actual soil pressures and groundwater perched in the sandy lenses that dot the Ashford area. Pairing the design with an in-situ permeability test lets us quantify how fast water moves through those lenses, which directly drives the drainage specification behind the wall.

A retaining wall in Ashford lives or dies by the drainage detail behind it — get that wrong and even a heavily reinforced stem will tilt within two wet seasons.

Our service areas

Scope of work

Ashford sits on the interface between the Low Weald and the North Downs, so within a single project we can encounter stiff grey clay at formation level and chalk just a few metres further down. That contrast means a retaining wall design cannot be pulled from a standard catalogue. The clay delivers high lateral pressures when saturated during a wet winter, while the chalk brings its own risk of dissolution features that undermine bearing capacity. Our approach ties each design stage to site-specific parameters measured in the Ashford ground rather than assumed from a desk study. We run consolidated-undrained triaxial tests to capture the effective stress behaviour of the local Gault and Weald Clay, and often recommend test pits to inspect the transition zone between the weathered crust and the intact material below. BS EN 1997-1:2004 defines three Design Approaches, and for Ashford conditions we typically work to DA1, combining partial factors with observed groundwater levels from standpipe readings taken over several tidal cycles on the Great Stour floodplain.
Retaining Wall Design in Ashford: Geotechnical Certainty Before Excavation
Technical reference — Ashford

Area-specific notes

The Weald Clay formation that underlies much of Ashford has a shrink-swell potential that catches out lightweight retaining structures. A dry summer opens cracks down to a metre deep; autumn rain fills those cracks and the swelling pressure can push a poorly designed cantilever wall forward by millimetres each year until the coping is out of plumb and the movement joints have closed. On the floodplain south of the town centre, near the Great Stour, the water table sits less than 1.5 metres below ground surface through much of the winter, so a wall that is stable in August can be subject to full hydrostatic pressure by December. We design the stem and the base slab for both the drained and the undrained condition, checking sliding, overturning and bearing resistance under the short-term pore pressure regime that governs during construction. Where the clay contains the occasional silt lamina, we add a granular chimney drain and a toe drain connected to a positive outfall, because even a 10 mm-thick silt layer can concentrate enough flow to erode the backfill if it is not intercepted.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.com

Standards used


BS EN 1997-1:2004 (Eurocode 7, Geotechnical design), BS 8002:2015 (Code of practice for earth retaining structures), PD 6694-1:2011 (Backfill and surcharge for highway structures), CIRIA C760 (Guidance on embedded retaining wall design)

Typical values

ParameterTypical value
Design life (permanent walls)50 years minimum per BS EN 1990
Partial factor setDA1 (Combination 1 and 2) per UK National Annex
Groundwater design caseHydrostatic plus perched water where proven by monitoring
Backfill friction angle (Ashford gravel)34–38° depending on grading and compaction
Surcharge for highway loading15 kPa or PD 6694-1 traffic model as applicable
Minimum base embedment in Weald Clay0.7 m below desiccated crust, verified by inspection pit
Concrete exposure classXC2 / XF1 for buried elements in Ashford ground

Frequently asked questions


How much does a retaining wall design for an Ashford project typically cost?

The design fee depends on wall height, ground conditions and whether the structure is permanent or temporary. For a typical Ashford residential retaining wall up to 2.5 metres retained height, the design package falls between £830 and £1,450. For taller commercial walls, basement boxes or walls near the railway corridor where Network Rail approval is required, the fee ranges from £1,850 to £3,430, including the full calculation package and construction issue drawings.

What ground investigation do I need before you can design the wall?

At minimum we need a window sample or cable percussive borehole taken from the position of the wall, with laboratory classification, shear strength testing and standpipe readings over at least one wet season. In Ashford the key questions are whether the Weald Clay contains silt partings and what depth the groundwater stabilises at in winter. Without that data we are guessing the pore pressure, and guessing is what leads to walls that lean forward after three years.

Can you design a retaining wall for a site within the Ashford flood zone?

Yes. Walls on the Great Stour floodplain require additional checks for buoyancy during a 1-in-100-year flood event, and we model the rapid drawdown condition after the water recedes. The design also needs to account for scour at the toe if the wall is near the riverbank. We coordinate with the Environment Agency flood model to set the design water level correctly.

Do you handle the building control or NHBC submission?

We produce the design package in a format ready for building control submission, including the geotechnical design report to BS EN 1997-1, the structural calculations and the construction drawings. For NHBC warranty applications we add the technical justification for the chosen Design Approach and a statement on serviceability limits, which the warranty surveyor will expect for any site on shrinkable clay.

How long does the design process take from instruction?

Once the ground investigation data is complete, a straightforward cantilever wall design for an Ashford residential project takes around two to three weeks. Complex embedded walls with propping stages or walls requiring Network Rail technical approval typically take four to six weeks, depending on the review cycle with the asset owner. We always flag the programme during the fee proposal so the main contractor can sequence the work accordingly.
